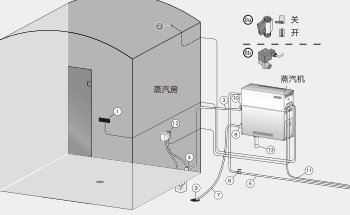

Steam Generator Components 1.Controller (touch panel) 2.Temperature sensor 3.Steam pipe 4.Steam nozzle 5.Water supply pipe 6.Water supply valve 7.Drain pipe 8a. Manual drain valve 8b. Electric drain valve (optional) 9.Floor drain outlet 10.Overpressure safety valve 11.Power cable 12.Fragrance output pump (optional) 13.Scale sediment cup
Request a Quote View All Products
CE Certified
OEM Available
Global Shipping

Technical Specifications

Detailed performance data for all available models in the Harvia HGD series.

Specification HGD45 HGD60 HGD90 HGD110 HGD150
Model HGD45 HGD60 HGD90 HGD110 HGD150
Power (KW) 4.5 5.7 9 10.8 15
Dimensions (mm) 460x210x435 460x210x435 460x210x435 460x210x435 460x210x435
Room Area (m²) for Thin Walls (e.g., plastic panels) With Ventilation 2-5 2.5-8 6-12 10-14.5 12-19.5
Room Area (m²) for Thin Walls (e.g., plastic panels) Without Ventilation 2-7 3.5-11 9-17 15-21 17-28
Room Area (m²) for Tiled Thin Walls With Ventilation 2-4 2-6 4.5-10 8-12 10-16
Room Area (m²) for Tiled Thin Walls Without Ventilation 2-6 3-9 7.5-14 12-17 14-23
Room Area (m²) for Stone/Brick Walls With Ventilation 2-3.5 2-5 3-8 6-10 8-13.5
Room Area (m²) for Stone/Brick Walls Without Ventilation 2-4.5 2-7.5 6-11.5 10-14 12-18.5
Steam Output 5.5 7.6 12 14.6 20.1
400V 3N~ Cable (mm²) 5x1.5 5x1.5 5x2.5 5x2.5 5x2.5
400V 3N~ Fuse (A) 3x10 3x10 3x16 3x16 3x16
230V 1N~ Cable (mm²) 3x6 3x6 -- -- --
230V 1N~ Fuse (A) 25 25 -- -- --
