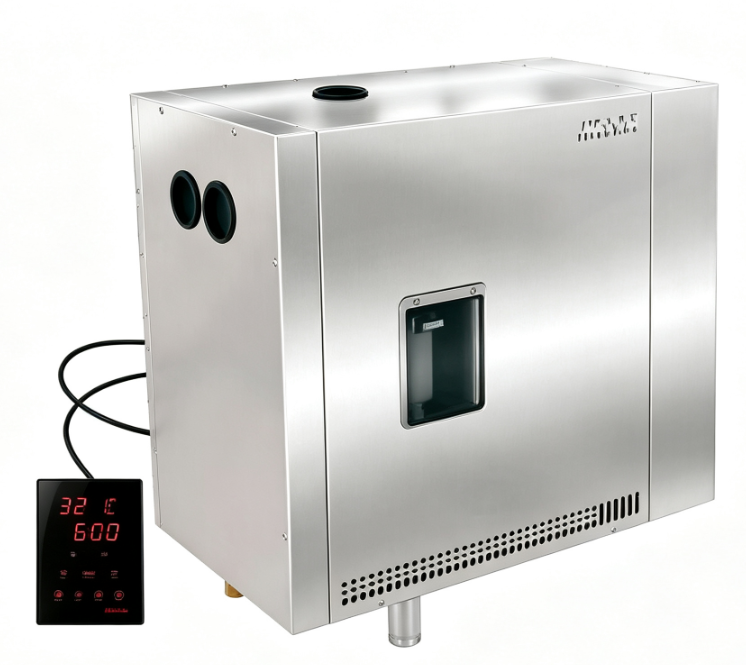

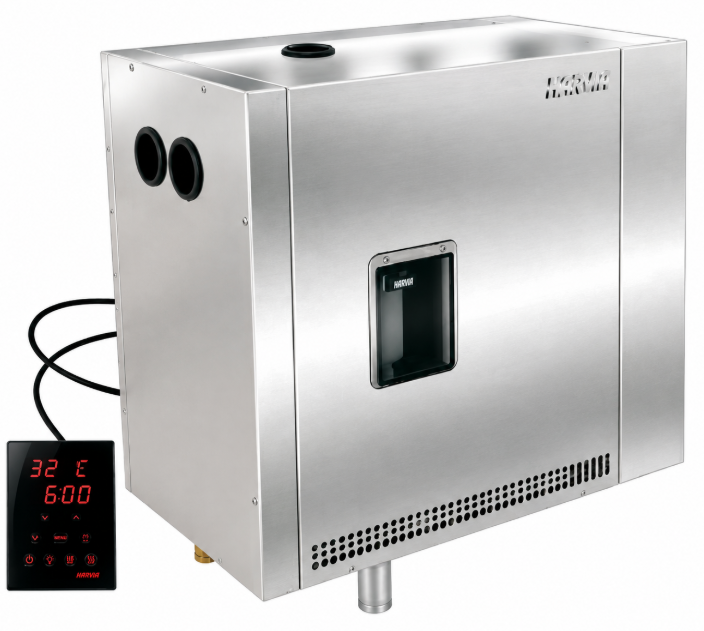

Harvia HGP
Harvia HGP
Harvia HGP
Harvia HGP
Harvia HGP

Harvia HGP

Steam Generator Components 1.Controller (touch panel) 2.Temperature sensor 3.Steam pipe 4.Steam nozzle 5.Water supply pipe 6.Water supply valve 7.Drain pipe 8.Floor drain outlet 9.Overpressure safety valve 10.Cable 11.Top rubber stopper 12.Scale sediment cup 13.Fragrance output tube Weight: 24kg (empty water tank), 133kg (full water tank)
Request a Quote View All Products
CE Certified
OEM Available
Global Shipping

Technical Specifications

Detailed performance data for all available models in the Harvia HGP series.

Specification HGP22 HGP30
Model HGP22 HGP30
Power (KW) 21.6 30
Dimensions (mm) 560x320x490 560x320x490
Room Area (m²) for Thin Walls (e.g., plastic panels) With Ventilation 20-29 24-39
Room Area (m²) for Thin Walls (e.g., plastic panels) Without Ventilation 30-42 34-56
Room Area (m²) for Tiled Thin Walls With Ventilation 16-24 20-32
Room Area (m²) for Tiled Thin Walls Without Ventilation 24-34 28-46
Room Area (m²) for Stone/Brick Walls With Ventilation 12-20 16-27
Room Area (m²) for Stone/Brick Walls Without Ventilation 20-28 24-37
Steam Output 29.2 40.2
400V 3N~ Cable (mm²) 2×5×6 2×5×6
400V 3N~ Fuse (A) 2×3×16 2×3×25
