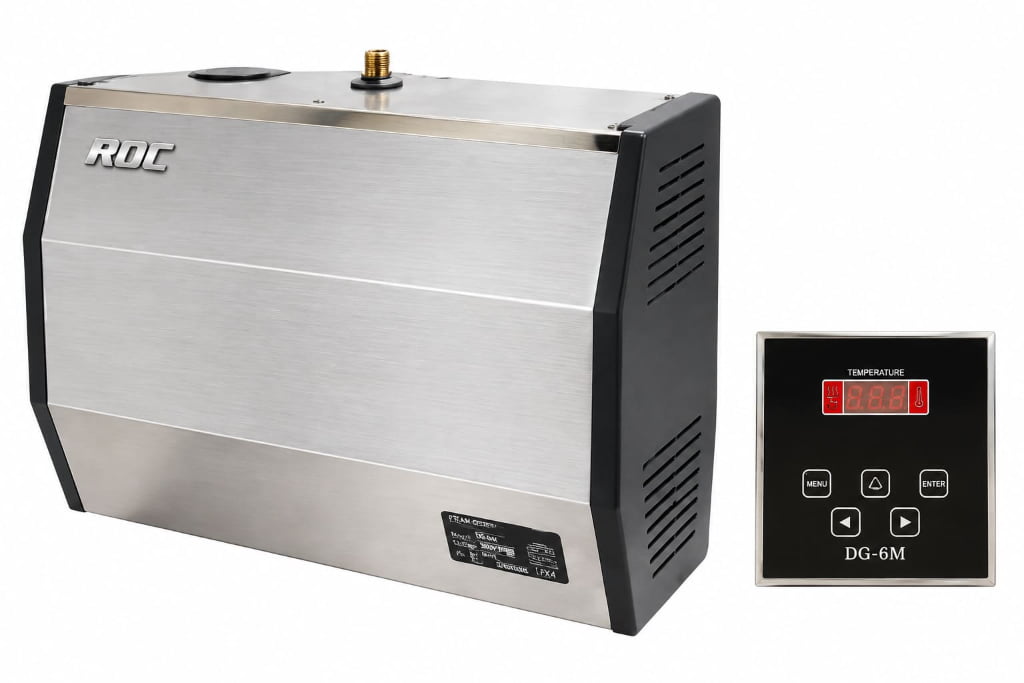

ROC YP Steam Generator 3–12 kW

The YP steam generator is a compact stainless cabinet with a separate digital panel, sized for steam rooms from 2.5 to 18 cubic metres. Models up to 9 kW accept either single-phase or three-phase supply; the 10.5 and 12 kW units are three-phase only. Casing: stainless steel cabinet with digital control panel.

6 models cover steam rooms from 2.5 to 18 m³: YP-30 (3.0 kW) for 2.5–5 m³, YP-45 (4.5 kW) for 3–5 m³, YP-60 (6.0 kW) for 6–7 m³, YP-90 (9.0 kW) for 10–12 m³, YP-105 (10.5 kW) for 12–15 m³ and YP-120 (12.0 kW) for 15–18 m³. Steam-room ratings assume a tiled, insulated room; a glass-walled or poorly insulated room needs the next size up.

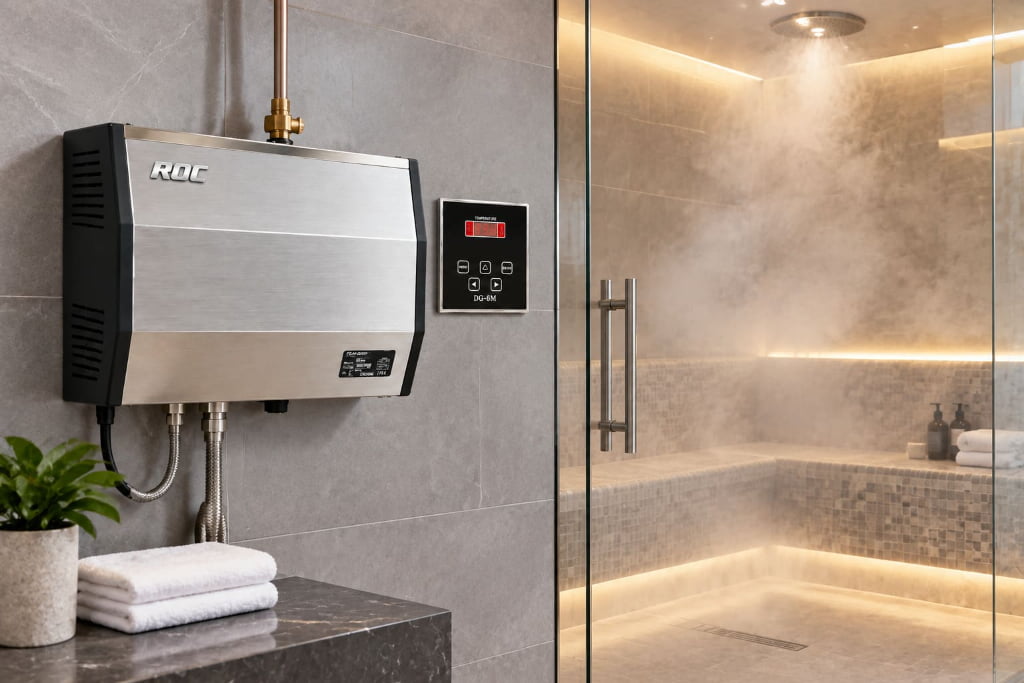

Models up to 9 kW accept 200–240 V single-phase or 380–415 V three-phase supply; models from 10.5 kW upward are three-phase only. CE marking is standard and UL certification for North America can be arranged on request, with the cost quoted per project. The YP steam generator is an ROC own-brand product available under your brand through our OEM and ODM service; see the full ROC Steam Generators range. Typical use: private steam rooms, hotel bathrooms and small spa cabins.
