ROC Y Steam Generator 4.5–18 kW
ROC Y Steam Generator 4.5–18 kW
ROC Y Steam Generator 4.5–18 kW
ROC Y Steam Generator 4.5–18 kW
ROC Y Steam Generator 4.5–18 kW thumbnail
ROC Y Steam Generator 4.5–18 kW thumbnail
ROC Y Steam Generator 4.5–18 kW thumbnail
ROC Y Steam Generator 4.5–18 kW thumbnail
ROC Steam Generators

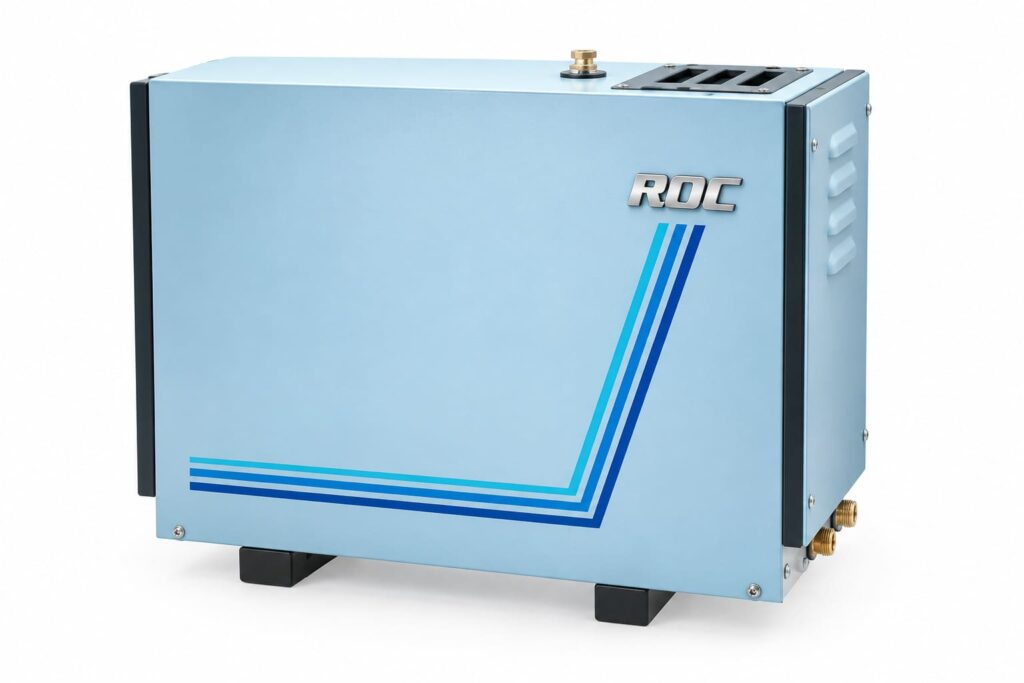

ROC Y Steam Generator 4.5–18 kW

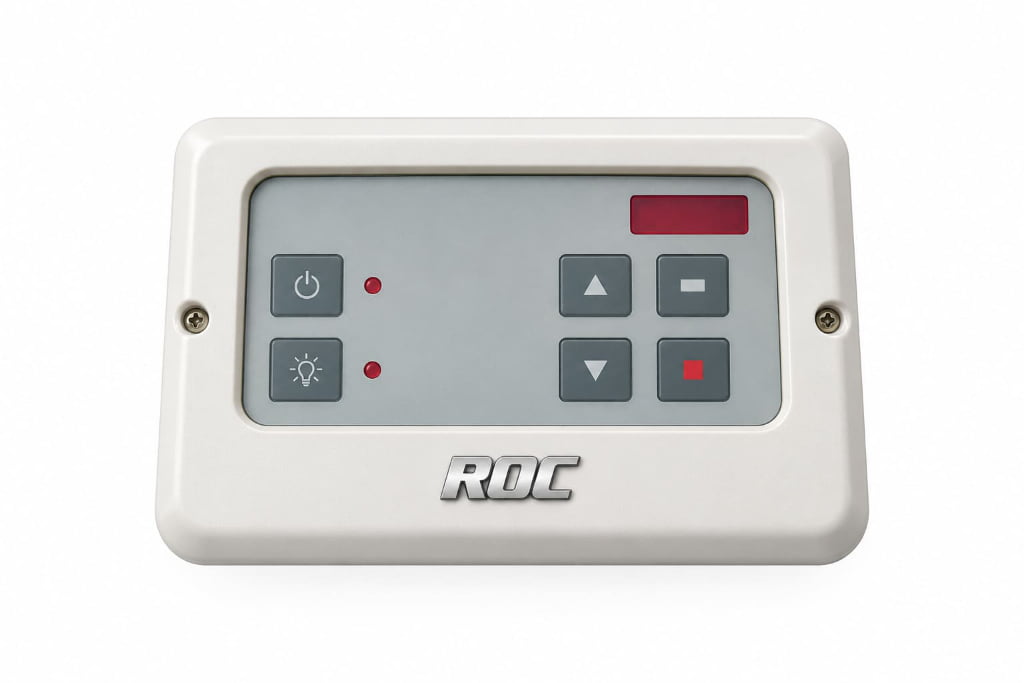

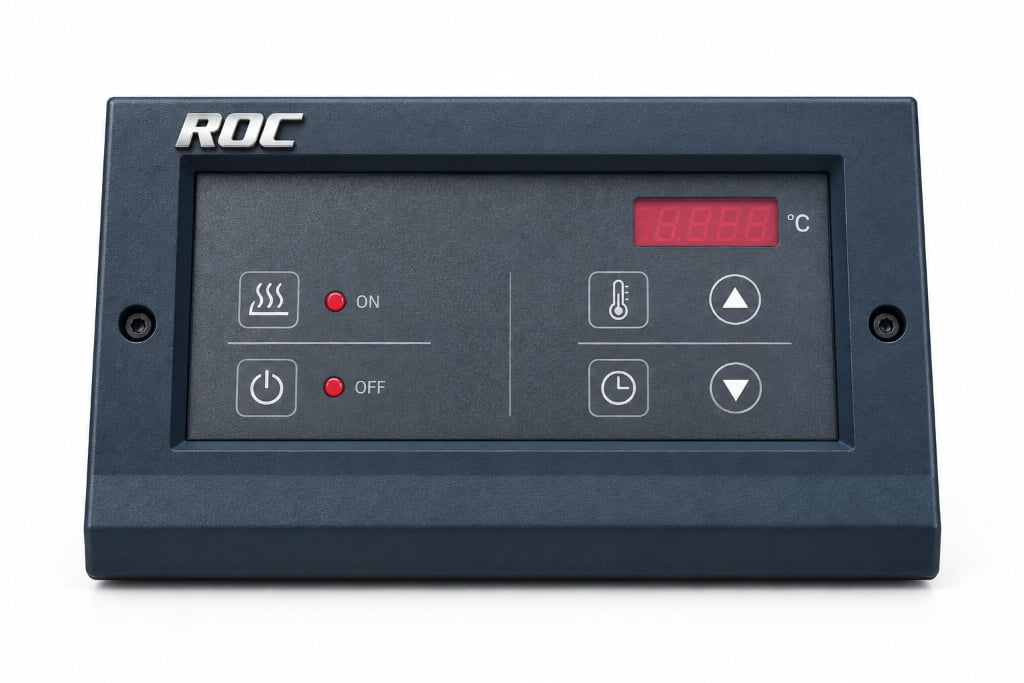

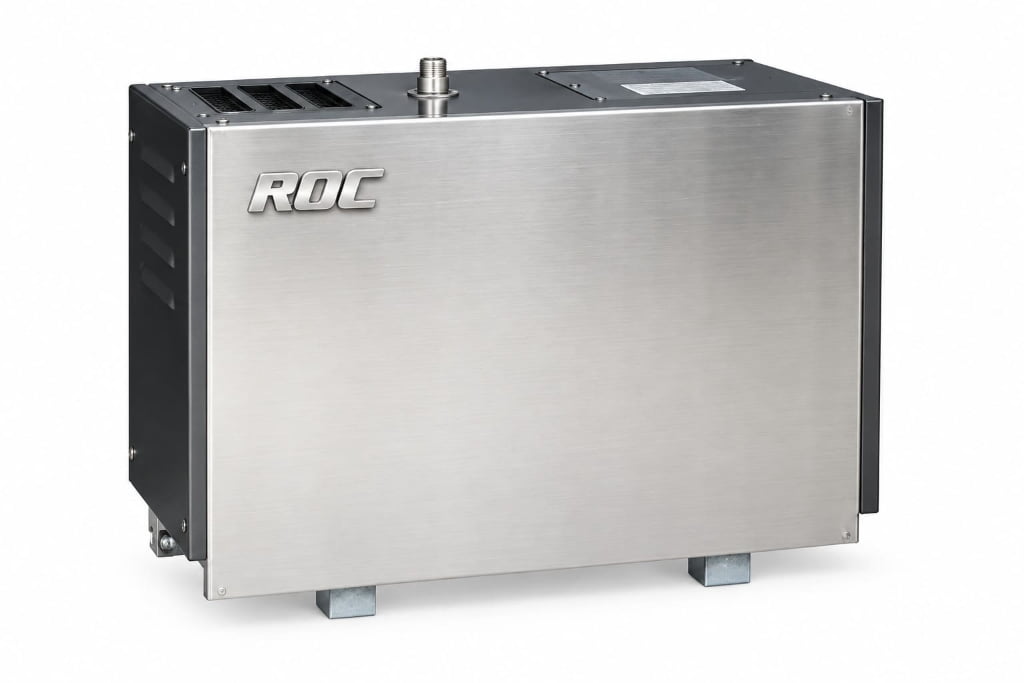

The Y series extends our steam range to 18 kW for steam rooms up to 25 cubic metres. It ships with a wall-mounted control panel and is available in a painted or a stainless cabinet. Models from 10.5 kW upward are three-phase only. Casing: painted or stainless steel cabinet with control panel.

Models and specifications

  • Y-45 (4.5 kW) for 3–5 m³
  • Y-60 (6.0 kW) for 6–7 m³
  • Y-90 (9.0 kW) for 10–12 m³
  • Y-105 (10.5 kW) for 12–15 m³
  • Y-120 (12.0 kW) for 15–18 m³
  • Y-150 (15.0 kW) for 18–21 m³
  • Y-180 (18.0 kW) for 21–25 m³

These ratings assume a tiled, insulated room. Glass and poor insulation increase heat loss, so confirm the final size for your construction.

Ordering and project support

Models up to 9 kW accept 200–240 V single-phase or 380–415 V three-phase supply. Models from 10.5 kW upward are three-phase only. CE marking is standard and UL certification for North America can be arranged on request, with the cost quoted per project. The Y steam generator is an ROC own-brand product available under your brand through our OEM and ODM service. See the full ROC Steam Generators range. Typical use: commercial steam rooms, hammams and spa suites.

Certification coverage, electrical version and included accessories are confirmed for the exact model and destination market. Genuine Harvia equipment retains its original branding; OEM and private-label options apply to ROC's own product line.

Certification Checked per Model
Model-Specific Options
Global Shipping

Technical Specifications

Detailed performance data for all available models in the ROC Y Steam Generator 4.5–18 kW series.

Specification Y-45 Y-60 Y-90 Y-105 Y-120 Y-150 Y-180
Model Y-45 Y-60 Y-90 Y-105 Y-120 Y-150 Y-180
Power (KW) 4.5 6.0 9.0 10.5 12.0 15.0 18.0
Room Volume (m³) 3–5 6–7 10–12 12–15 15–18 18–21 21–25
Voltage 200–240 V or 380–415 V 200–240 V or 380–415 V 200–240 V or 380–415 V 380–415 V 380–415 V 380–415 V 380–415 V
Dimensions (mm) 530 × 225 × 410 530 × 225 × 410 530 × 225 × 410 530 × 225 × 470 530 × 225 × 470 530 × 225 × 470 530 × 225 × 470
Inquire About This Product

Get a Custom Quote

Interested in the ROC Y Steam Generator 4.5–18 kW? Fill in the form below and our team will respond within 24 hours with pricing, MOQ details and lead time.

Frequently Asked Questions

Which ROC Y steam generator model suits my steam room?

Match the steam room volume to the published range: Y-45 (4.5 kW) for 3–5 m³, Y-60 (6.0 kW) for 6–7 m³, Y-90 (9.0 kW) for 10–12 m³, Y-105 (10.5 kW) for 12–15 m³, Y-120 (12.0 kW) for 15–18 m³, Y-150 (15.0 kW) for 18–21 m³ and Y-180 (18.0 kW) for 21–25 m³. Glass walls, high ceilings or weak insulation call for the next size up.

Does the ROC Y steam generator run on single-phase power?

Models up to 9 kW run on 200 to 240 V single-phase or 380 to 415 V three-phase supply. Models of 10.5 kW and above need a three-phase supply.

Can the ROC Y steam generator be supplied under our own brand?

Yes. It is an ROC own-brand product built for OEM and ODM supply, with your badge and packaging. CE marking is standard; UL certification for North America can be arranged on request and the cost is quoted per project.
