How many ROC infrared panels does a cabin need?

Infrared cabins are sized by seat, not by room volume: one back panel per seat, side panels beside each seat and a foot-warming panel on the floor is the usual layout. Send us the cabin drawing and we will propose the panel set and total wattage.

What controls the ROC infrared panels?

Our spectrum room controller, which switches the panels, lighting and audio from a touch panel and works on 220 V or 380 V supply. Conventional sauna controllers are not used for infrared panels.

Can the infrared panels be supplied under our own brand?

Yes. They are ROC own-brand products built for OEM and ODM supply, with your badge and packaging. CE marking is standard; UL certification for North America can be arranged on request and the cost is quoted per project.

Infrared Heating Panels | Carbon & Foot Warmer

ROC Infrared Heating Panels

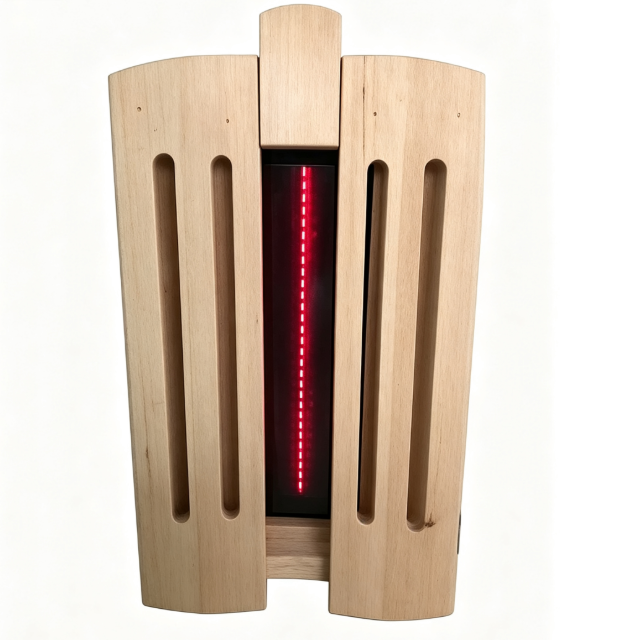

Far-infrared heating for infrared cabins and spectrum rooms: a 300 W infrared therapy tube in a slatted wooden housing for back treatment, carbon-crystal wall panels in three sizes, and two glass foot-warming panels for the floor. The panels give a gentle, direct warmth and are driven by our spectrum room controller. Casing: carbon-crystal panels in wooden frames; glass foot-warming panels.

Six panels: the infrared therapy tube at 300 W; carbon-crystal wall panels of 1000 × 400 mm (350 W), 1000 × 300 mm (300 W) and 600 × 300 mm (180 W); and foot-warming panels of 1000 × 350 mm (120 W) and 700 × 350 mm (70 W). A cabin is fitted with several panels around the bather, sized to the seat positions rather than to room volume.

The panels run on 220–240 V supply through our spectrum room controller and are CE marked as standard; UL certification for North America can be arranged on request, with the cost quoted per project. They are ROC own-brand products available under your brand through our OEM and ODM service; see the ROC Infrared Heating Panels series and the spectrum room controller. Typical use: infrared cabins, spectrum therapy rooms and infrared add-ons to conventional saunas.

CE Certified

OEM Available

Global Shipping

Specification	IR-300	CP-1000x400	CP-1000x300	CP-600x300	FP-1000x350	FP-700x350
Model	IR-300	CP-1000x400	CP-1000x300	CP-600x300	FP-1000x350	FP-700x350
Power (KW)	0.3	0.35	0.3	0.18	0.12	0.07
Voltage	220–240 V 1N~ / 380–415 V 3N~	220–240 V 1N~ / 380–415 V 3N~	220–240 V 1N~ / 380–415 V 3N~	220–240 V 1N~ / 380–415 V 3N~	220–240 V 1N~ / 380–415 V 3N~	220–240 V 1N~ / 380–415 V 3N~
Control	Separate control unit	Separate control unit	Separate control unit	Separate control unit	Separate control unit	Separate control unit
Dimensions (mm)	--	1000 × 400	1000 × 300	600 × 300	1000 × 350	700 × 350
Casing	Infrared therapy tube in slatted wooden housing	Carbon-crystal wall panel	Carbon-crystal wall panel	Carbon-crystal wall panel	Glass foot-warming panel	Glass foot-warming panel
