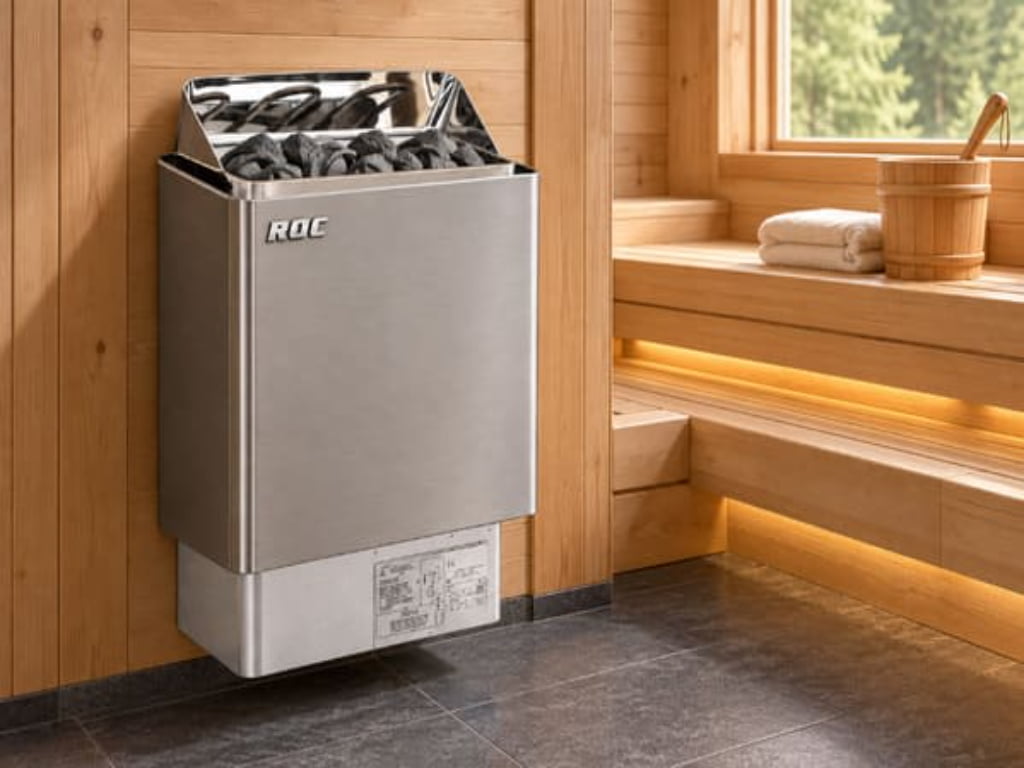

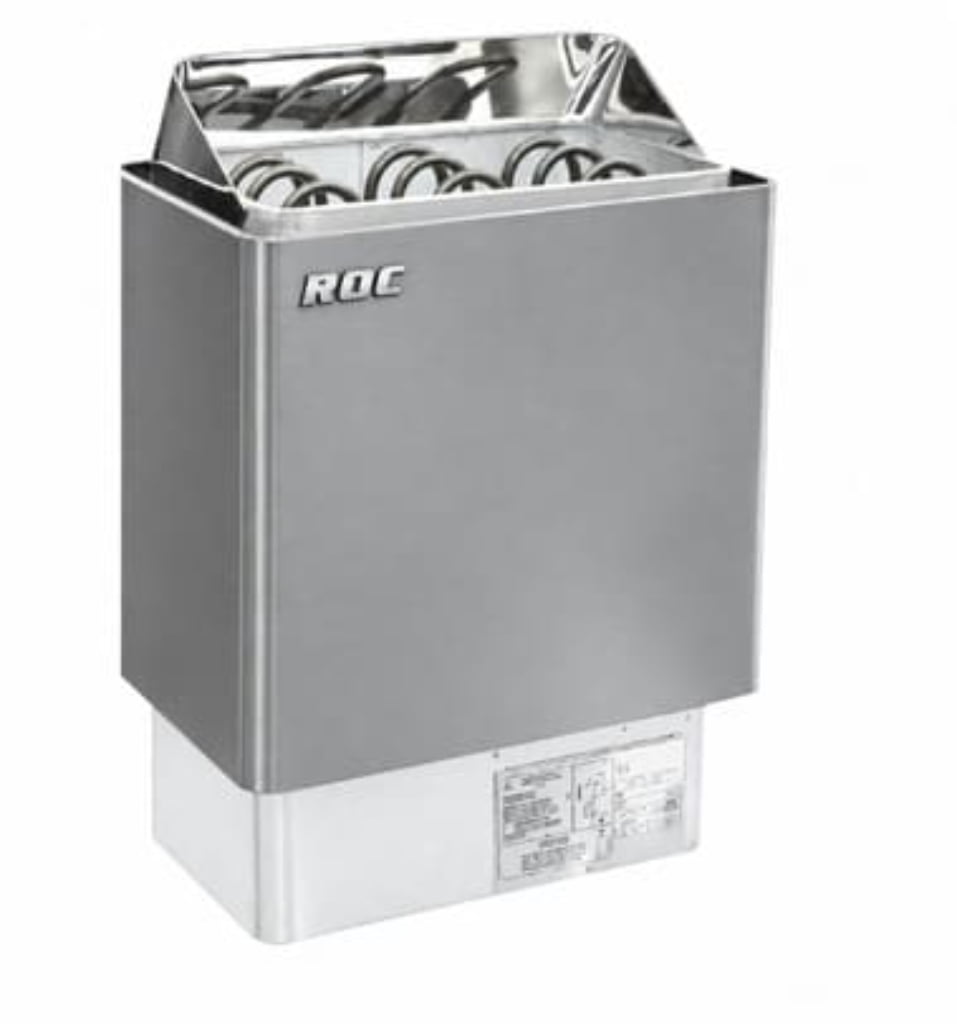

The ROC SCA Wall-Mounted Sauna Heater is our standard heater for home and small commercial saunas: a slim body, a wide stone chamber for soft heat, and a separate control unit so the panel can sit outside the hot room. Casing: powder-coated steel.
5 models cover sauna rooms from 2 to 13 m³: SCA-30W (3.0 kW) for 2–4 m³, SCA-45W (4.5 kW) for 3–6 m³, SCA-60W (6.0 kW) for 5–9 m³, SCA-80W (8.0 kW) for 8–12 m³ and SCA-90W (9.0 kW) for 9–13 m³. Choose the model whose published room volume range contains your room; if the room sits at the top of a range, step up one size.
All ROC heaters run on 220–240 V single-phase or 380–415 V three-phase supply and are CE marked as standard; UL certification for North America can be arranged on request, with the cost quoted per project. The SCA external-control heater is an ROC own-brand product and can be supplied under your brand through our OEM and ODM service. See the full ROC SCA Wall-Mounted Heaters range. Typical use: home saunas, hotel rooms and small club saunas.
Detailed performance data for all available models in the ROC SCA Wall-Mounted Sauna Heater (External Control) series.
| Specification | SCA-30W | SCA-45W | SCA-60W | SCA-80W | SCA-90W |
|---|---|---|---|---|---|
| Model | SCA-30W | SCA-45W | SCA-60W | SCA-80W | SCA-90W |
| Power (KW) | 3.0 | 4.5 | 6.0 | 8.0 | 9.0 |
| Room Volume (m³) | 2–4 | 3–6 | 5–9 | 8–12 | 9–13 |
| Voltage | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ |
| Control | Separate control unit | Separate control unit | Separate control unit | Separate control unit | Separate control unit |
Interested in the ROC SCA Wall-Mounted Sauna Heater (External Control)? Fill in the form below and our team will respond within 24 hours with pricing, MOQ details and lead time.
Match your room volume in cubic metres to the published range: SCA-30W (3.0 kW) for 2–4 m³, SCA-45W (4.5 kW) for 3–6 m³, SCA-60W (6.0 kW) for 5–9 m³, SCA-80W (8.0 kW) for 8–12 m³ and SCA-90W (9.0 kW) for 9–13 m³. If the room sits between two ranges, choose the larger model or send us the room size and we will size it for you.
No. It is wired for a separate ROC control unit such as the basic, digital, YP-T or AT86 controller, chosen to match the heater power. The control panel is mounted outside the sauna room.
Yes. It is an ROC own-brand product built for OEM and ODM supply, with your badge, colour and packaging. CE marking is standard; UL certification for North America can be arranged on request and the cost is quoted per project.
