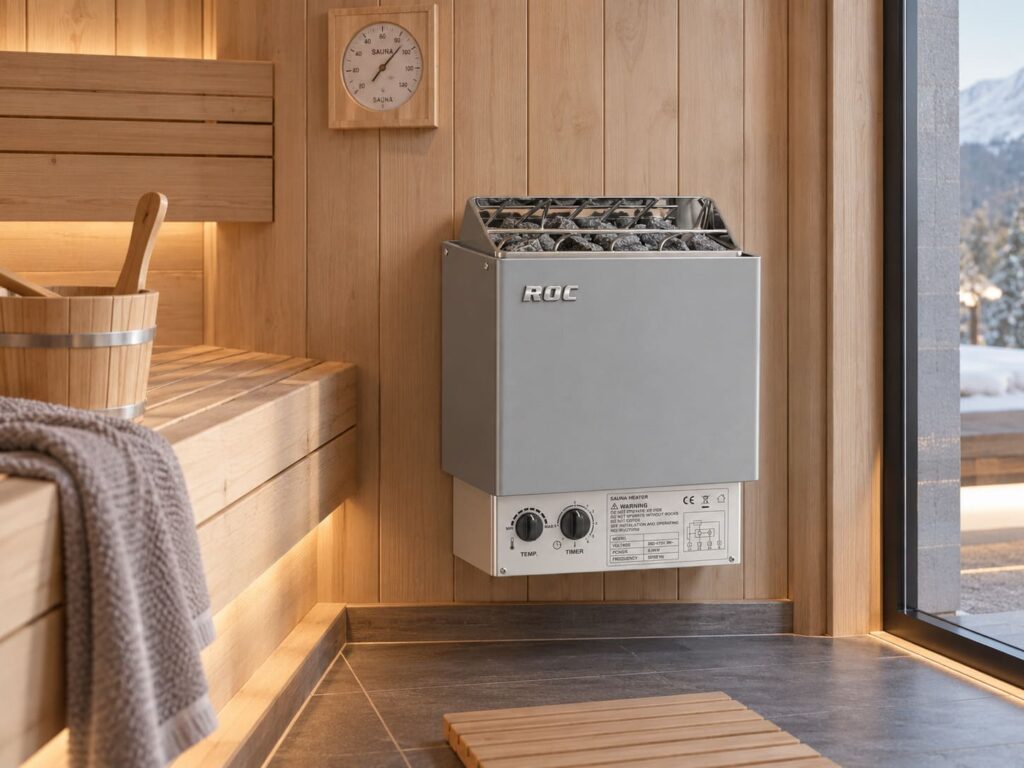

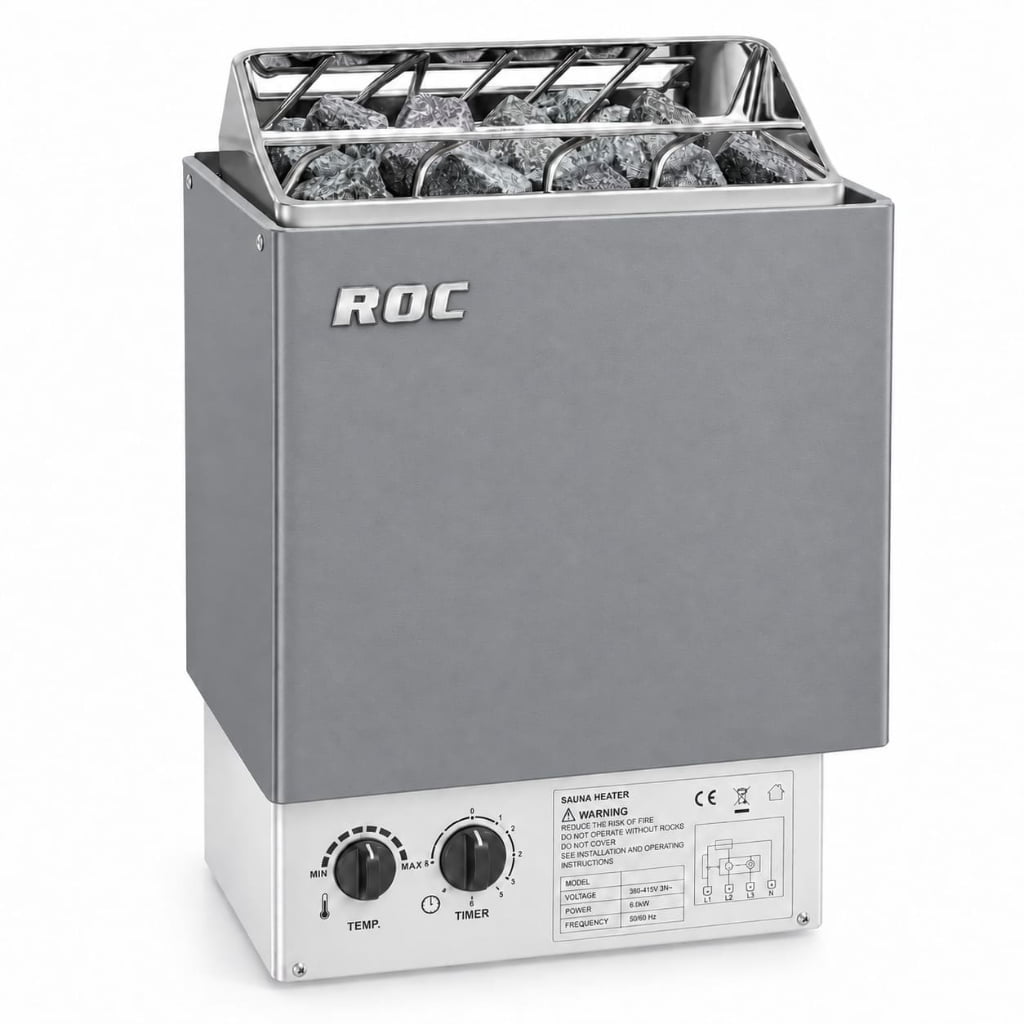

The built-in control SCA carries its own timer and thermostat knobs on the lower front panel, so no separate control unit or extra wiring run is needed. It is the simplest heater to install in a small sauna. Casing: powder-coated steel.
Use these published ranges as a starting point. Then confirm the required output against the room materials, glazing and the selected model manual.
The published supply options are 220–240 V single-phase or 380–415 V three-phase, depending on the model. Confirm the exact electrical configuration before ordering. CE marking is standard. For North America, ask us to confirm the required certification and project-specific cost. The SCA built-in-control heater is an ROC own-brand product and can be supplied under your brand through our OEM and ODM service. See the full ROC SCA Wall-Mounted Heaters range. Typical use: home saunas and rental cabins where a compact, self-contained heater is wanted.
Certification coverage, electrical version and included accessories are confirmed for the exact model and destination market. Genuine Harvia equipment retains its original branding; OEM and private-label options apply to ROC's own product line.
Detailed performance data for all available models in the ROC SCA Wall-Mounted Sauna Heater (Built-in Control) series.
| Specification | SCA-30NS | SCA-45NS | SCA-60NS | SCA-80NS | SCA-90NS |
|---|---|---|---|---|---|
| Model | SCA-30NS | SCA-45NS | SCA-60NS | SCA-80NS | SCA-90NS |
| Power (KW) | 3.0 | 4.5 | 6.0 | 8.0 | 9.0 |
| Room Volume (m³) | 2–4 | 3–6 | 5–9 | 8–12 | 9–13 |
| Voltage | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ | 220–240 V 1N~ / 380–415 V 3N~ |
| Control | Built-in controls | Built-in controls | Built-in controls | Built-in controls | Built-in controls |
Interested in the ROC SCA Wall-Mounted Sauna Heater (Built-in Control)? Fill in the form below and our team will respond within 24 hours with pricing, MOQ details and lead time.
Match your room volume in cubic metres to the published range: SCA-30NS (3.0 kW) for 2–4 m³, SCA-45NS (4.5 kW) for 3–6 m³, SCA-60NS (6.0 kW) for 5–9 m³, SCA-80NS (8.0 kW) for 8–12 m³ and SCA-90NS (9.0 kW) for 9–13 m³. If the room sits between two ranges, choose the larger model or send us the room size and we will size it for you.
No. The timer and thermostat are built into the heater itself, so only the power supply is wired in. Choose the external-control version if you want the panel outside the room.
Yes. It is an ROC own-brand product built for OEM and ODM supply, with your badge, colour and packaging. CE marking is standard; UL certification for North America can be arranged on request and the cost is quoted per project.
