ROC HX Curved Sauna Heater (External Control)

Explore the ROC external control sauna heater range for your project. Compare the model details below, then confirm the configuration that fits your project.

Choosing your External control sauna heater

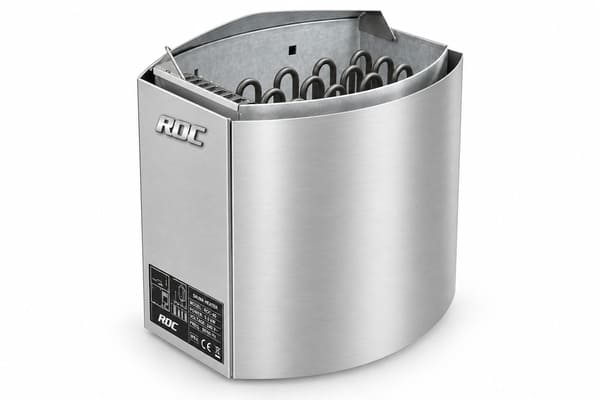

The HX has a curved stainless front that softens the look of a small sauna while keeping the stone chamber open for fast steam. With a separate control unit it covers rooms from 3 to 13 cubic metres. Casing: curved brushed stainless steel.

Models and specifications

  • HX-45B (4.5 kW) for 3–6 m³
  • HX-60B (6.0 kW) for 5–9 m³
  • HX-80B (8.0 kW) for 8–12 m³
  • HX-90B (9.0 kW) for 9–13 m³

Use these published ranges as a starting point. Then confirm the required output against the room materials, glazing and the selected model manual.

Ordering and project support

The published supply options are 220–240 V single-phase or 380–415 V three-phase, depending on the model. Confirm the exact electrical configuration before ordering. CE marking is standard. For North America, ask us to confirm the required certification and project-specific cost. The HX external-control heater is an ROC own-brand product and can be supplied under your brand through our OEM and ODM service. See the full ROC HX Heaters range. Typical use: design-led home saunas and boutique hotel rooms.

Certification coverage, electrical version and included accessories are confirmed for the exact model and destination market. Genuine Harvia equipment retains its original branding; OEM and private-label options apply to ROC's own product line.

Certification Checked per Model
Model-Specific Options
Global Shipping

Technical Specifications

Detailed performance data for all available models in the ROC HX Curved Sauna Heater (External Control) series.

Specification HX-45B HX-60B HX-80B HX-90B
Model HX-45B HX-60B HX-80B HX-90B
Power (KW) 4.5 6.0 8.0 9.0
Room Volume (m³) 3–6 5–9 8–12 9–13
Voltage 220–240 V 1N~ / 380–415 V 3N~ 220–240 V 1N~ / 380–415 V 3N~ 220–240 V 1N~ / 380–415 V 3N~ 220–240 V 1N~ / 380–415 V 3N~
Control Separate control unit Separate control unit Separate control unit Separate control unit
Inquire About This Product

Get a Custom Quote

Interested in the ROC HX Curved Sauna Heater (External Control)? Fill in the form below and our team will respond within 24 hours with pricing, MOQ details and lead time.

Frequently Asked Questions

Which ROC HX external-control model do I need for my sauna room?

Match your room volume in cubic metres to the published range: HX-45B (4.5 kW) for 3–6 m³, HX-60B (6.0 kW) for 5–9 m³, HX-80B (8.0 kW) for 8–12 m³ and HX-90B (9.0 kW) for 9–13 m³. If the room sits between two ranges, choose the larger model or send us the room size and we will size it for you.

Does the ROC HX external-control heater include a controller?

No. It is wired for a separate ROC control unit such as the basic, digital, YP-T or AT86 controller, chosen to match the heater power. The control panel is mounted outside the sauna room.

Can the ROC HX external-control heater be supplied under our own brand, and is it UL certified?

Yes. It is an ROC own-brand product built for OEM and ODM supply, with your badge, colour and packaging. CE marking is standard; UL certification for North America can be arranged on request and the cost is quoted per project.
